Tipping Bucket Rain Gauge

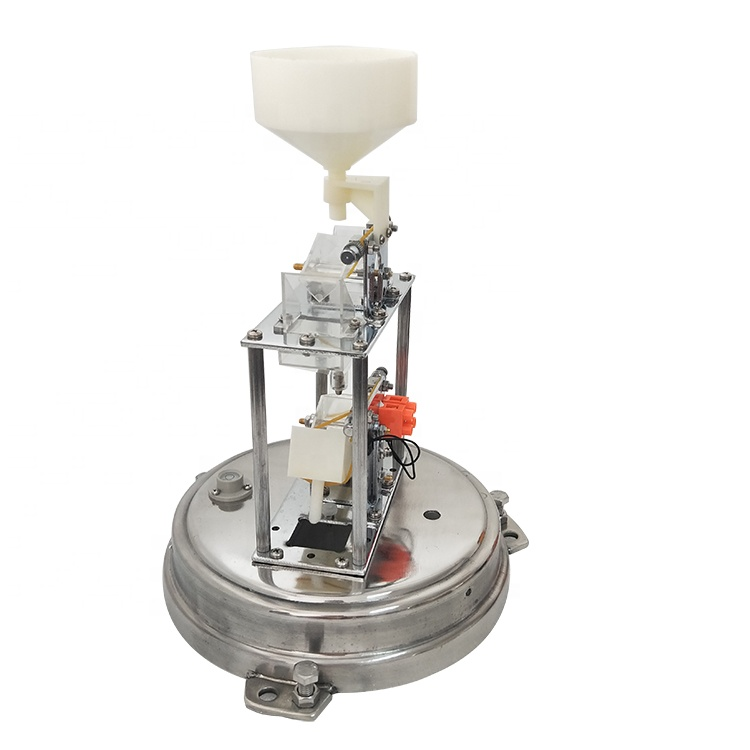

BGT-SS1 Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Further details , please contact us!
|Accuracy||±≤ 2%(≤ 0.4mm/min); ±≤ 3%(≤4mm/min);|
|Collector diameter||200mm/8inch ±0.3%|
|Acute angle of cutting edge||45°|
|Output||0.1 sec switch closure,Reed switch,10 pulse/mm(MaxDC12V,500mA)|
|Switch||Rugged Magnetic Proximity|
|Leveling||Bulls eye level adhered,leveling screw adjust|
|Debris protection filter||Steel stainless Mesh is provided inside the collector|
|Mounting holes||Three mountings|
|Discharge control||Straight through flow mechanism|
